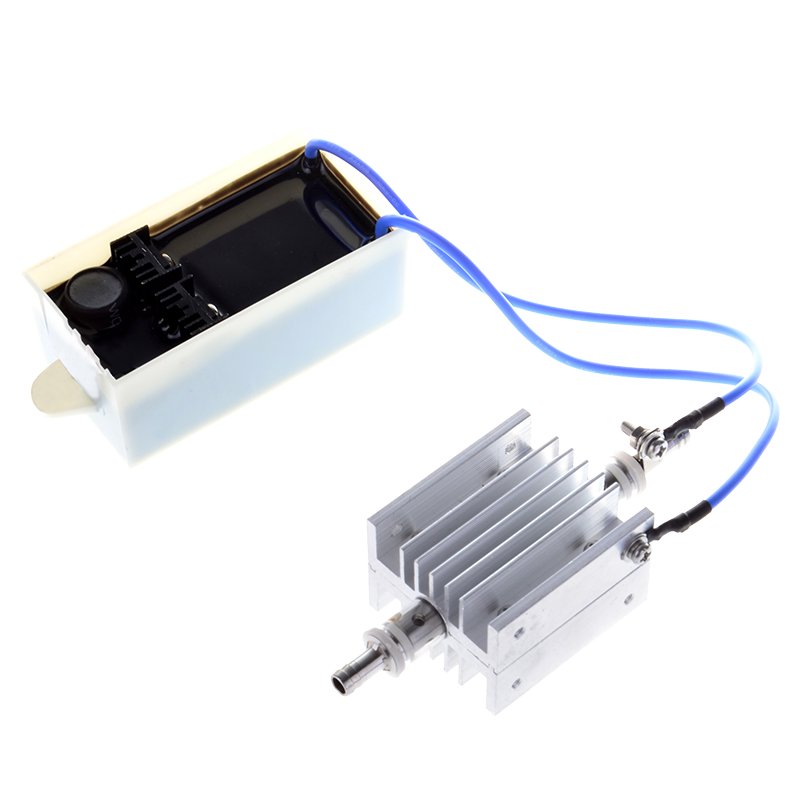

Corona discharge 500mg/h with dry air ozone o3 gas module ozone module quart

Want a superior quality, durable ozone module?

Aquapure ozone module was developed from German office which use the latest corona discharge technology. With a high performance, we use accurate quartz tube and 316SS/Titanium electrode for the generator part, we sure a stable unit will help you win more business.

Advantage:
1. High performance and compact size;
2. Very stable performance;
3. Very easy installation with very reasonable design;
4. Fan cooIing mode with a big cooling fins area;
5. Quartz tube can be easily cleaned, should it become contaminated;
6. High ozone concentration with dry air source;
7.100% check ozone concentration;
8.100% burn-in test;
9.100% 316 S.S and ozone compatible material;
10.Suitable for water/air/medical treatment;
11.500mg/h ozone output available.

Function:
1. Ozone output: 500mg/h with dry air, 400mg/h with normal air
2. Ozone generator: Quartz Tube and 316 SS electrode (Titanium electrode optional)
3. High ozone concentration: > 5.0 mg/L at 2.5 L/min gas flow
4. Weight: only 0.3 Kg
5. Technology: German corona discharge
6. Low power consumption: 10W
7.Voltage: 12V DC
8.High voltage: 4.12Kv
9.High frequency: 24KHz
10. Life span: >10,000 hours non stop working
